Product Overview

Vision Video Processor

Downloads:
(right click & save as)
->Vision specs
->Quickstart guide
->User manual

Product Overview:

The Vision™ Video Processor provides exceptional deinterlacing and scaling. Unlike many video processors which are limited to a single, or a few, output resolutions, it allows output timing to be precisely tuned to the projector’s, or High-Definition Television’s (HDTV), optimal configuration.

Most projectors and HDTV's provide a good picture for high-definition sources, but they often fall short for standard definition (SDTV) sources. The Vision Video Processor corrects this shortcoming and makes SDTV sources look great on these displays.

The deinterlacer converts interlaced video input to progressive video using four input fields to determine the contents of each frame. For progressive material, the original frames are reassembled using 3:2, or 2:2, pull-down reconstruction. For video material, interlaced-video artifacts are detected on a per-pixel basis. Using the result of this artifact detection, the source pixels are merged, or blended, into the best possible progressive image.

Proprietary detail-enhancing algorithms are used to scale the progressive video to the optimal resolution. The video is over-sampled to enhance the image quality. Video oversampling provides the same benefit that audio oversampling does for CDs. That is, it produces the most-accurate reproduction of the video signal possible.

When processing is completed, the digital video is converted to analog using three over-sampled 10-bit digital-to-analog converters .

Progressive output is supported from 480p to 1080p in scanline increments, at up to 75 Hertz. Interlaced output is supported at 1080i. In addition, the output vertical-refresh-rate and the aspect ratio are programmable.

Each input has two unique input calibrations and, optionally, two independent output configurations.

A pass-through input is provided for high definition sources. The pass through video is buffered using high-bandwidth video amplifiers. For displays that require a specific sync polarity, discrete sync signals can optionally be converted to the same polarity as the internally generated sync outputs.

For additional information:
email: sales@lumagen.com
ph: 503-574-2211 or 866-888-3330

Front Panel

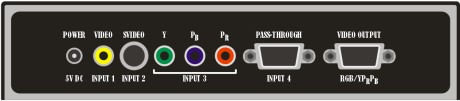

Rear Panel

Key Features

Inputs:

Composite, SVideo, and Component video
Pass-through, with 300 MHz bandwidth
Studio quality TV decoder with 10-bit A/D
Adaptive comb-filter (3 or 4 line) for reduction
of cross-luma and cross-chroma artifacts
Automatic selection of NTSC (M, Japan, 4.43), PAL (B, D, G, H, I, M, N, Nc) or SECAM (B, D, G, K, K1, L) for composite and SVideo.

Video Processing:

Film pull-down reconstruction (3:2 and 2:2)
Per-pixel motion-adaptive video deinterlacing
Detail-enhancing resolution scaling
Programmable cropping for each input memory
Black-level, contrast, color and hue calibration
Chroma-phase calibration
Source aspect ratio selection of 4:3, letter-box
and 16:9, with two zoom levels each
Two memories per input, for input calibration,
and output setup

Output

Programmable output resolution from 480p to 1080p
in scanline increments, plus 1080i
Programmable vertical refresh rate from 48 to 75 Hertz,
in steps of 0.01 Hertz
Programmable output aspect ratio from 1.33 to 2.35,
in steps of 0.01
10-bit oversampled digital-to-analog conversion
RGBHV, RGBS, RGsB, or YPRPB output format
Embedded bilevel or trilevel sync
Discrete RGB sync polarities are programmable

Miscellaneous

Infrared remote
Menu-based setup with on-screen display
Configuration save with undo and lock
Supply range of 100 to 240 volts at 47 to 63 Hz.
Case: 8x2x9 inches (203x51x23 mm)
Silent operation (no fan)
